Aluminum Alloy Slidable Type MPO/MTP Management Cassette Patch Panel
Description:
1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.
1U 19inch MPO/MTP Patch Panel could load 4 Pre-connected cassette module, and the maximum capacity can be managed is 1152 cores for MPO interface, or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Application:
Super-high density fiber optic patch panel is mainly applied in the termination and distribution of trunk cables in central office of optical fiber communication systems, which can facilitate the connection of optical fiber links, and thus widely applicable in data centers, computer rooms and other scenarios.

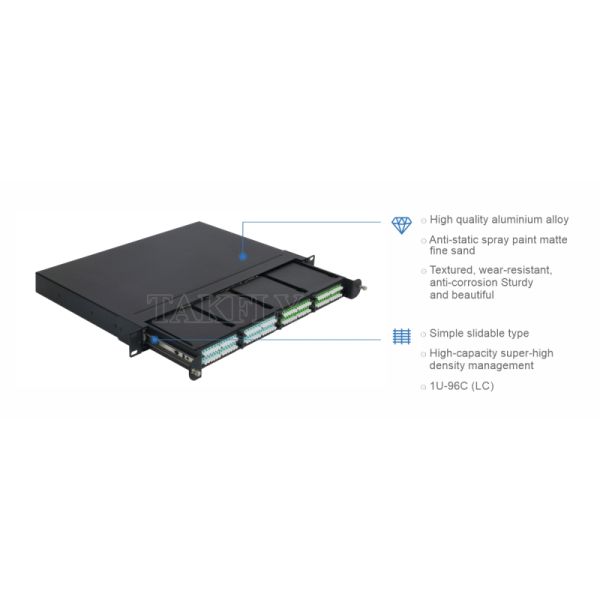

High quality aluminium alloy + Anti-static spray paint matte fine sand:
Textured wear-resistant and anti-corrosion Sturdy and beautiful.
Simple slidable type, High-capacity super-high density management.
Fiber capacity
Assemble LC, SC, FC, ST adapter panels
Internal structure design of cassette module:
Internal structure design of cassette module
The adapter and the equipment are installed in a snap-fit manner to ensure the patch cord with bending radius has storage space of more than 2cm, and thus more stable low-loss data.
Parameter:
